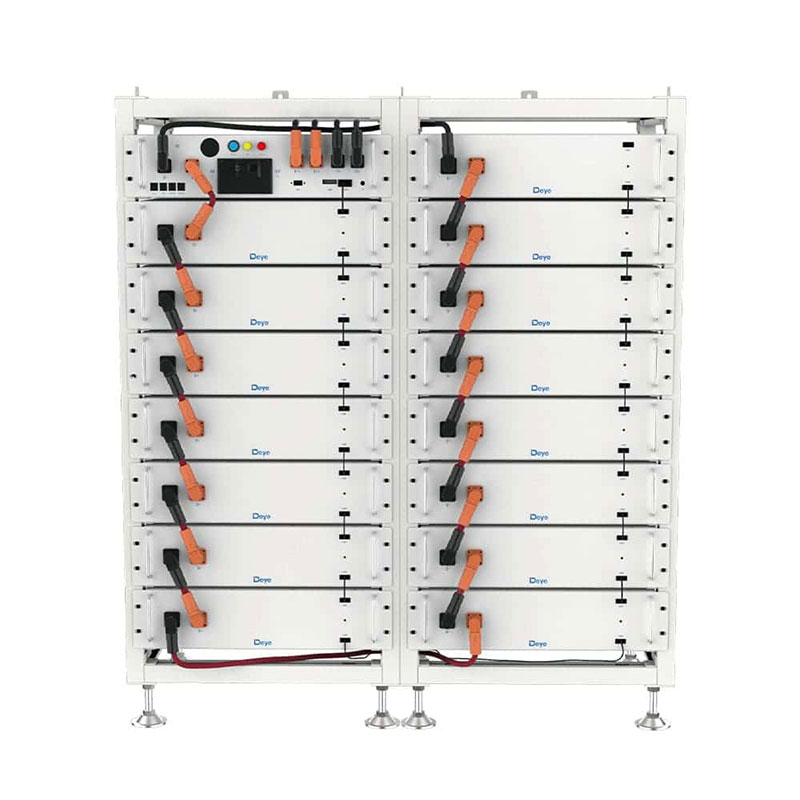

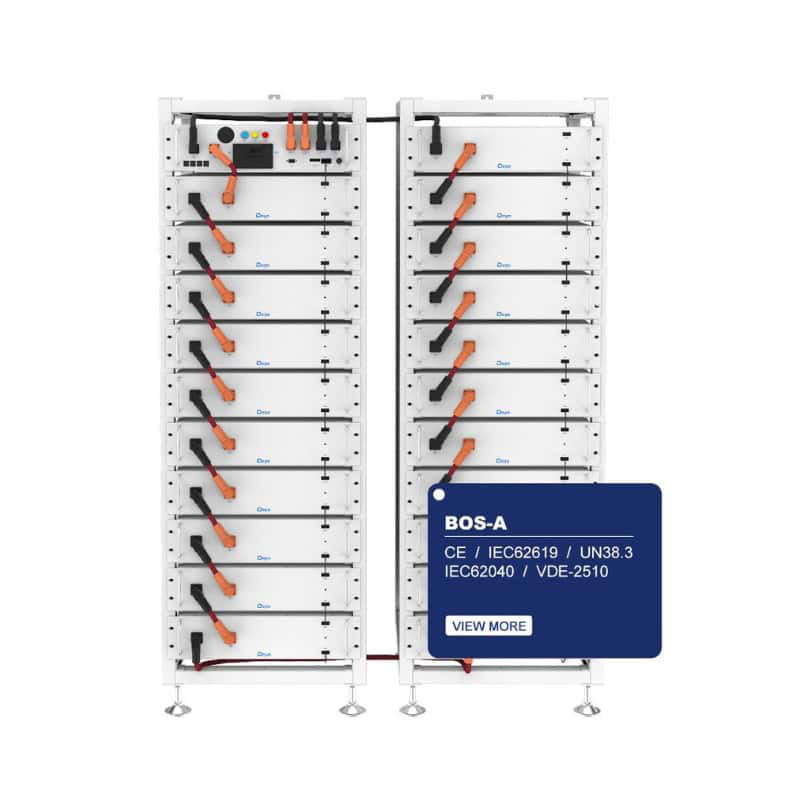

Deye BOS-A-Rack 11 layers, 82.88KWH based on BOS-A-Pack HV system

BOS-A is a convenient, safe and eco-friendly LiFePO4 battery module with intelligent BMS, wide temperature range and flexible configuration options for efficient power backup and renewable energy storage.

Key Features and Benefits:
• Convenient Installation: The module’s quick installation and standard embedded design make it easy to set up and maintain, saving you time and effort.
• Safe and Reliable: Constructed with LiFePO4 cathode material, our module offers excellent safety performance and a long cycle life. With minimal self-discharge and no memory effect, it can be stored for up to 6 months without charging and delivers outstanding performance in shallow charge and discharge cycles.
• Intelligent BMS: The integrated Battery Management System (BMS) provides comprehensive protection against over-discharge, overcharge, over-current, and extreme temperatures. It automatically manages charge and discharge states while balancing the current and voltage of each cell.
• Eco-Friendly: Our non-toxic, non-polluting, and environmentally friendly module is designed with sustainability in mind.
• Flexible Configuration: Expand capacity and power by connecting multiple battery modules in parallel. The module supports USB, WiFi (optional), and remote upgrades, making it compatible with Deye inverters.
• Wide Temperature Range: With an operating temperature range of -20°C to 55°C, our module delivers excellent discharge performance and cycle life in various environments.

Specifications:
• Cell Chemistry: LiFePO4
• Module Energy: 7.68 kWh
• Module Nominal Voltage: 38.4 V
• Module Capacity: 200 Ah
• Module Dimensions (W/D/H): 576 x 601 x 135 mm
• Module Weight: Approximately 65 kg
