Deye BOS-G-PDU-2 BMU, 120-1000V, 100A Поставщики, Компания

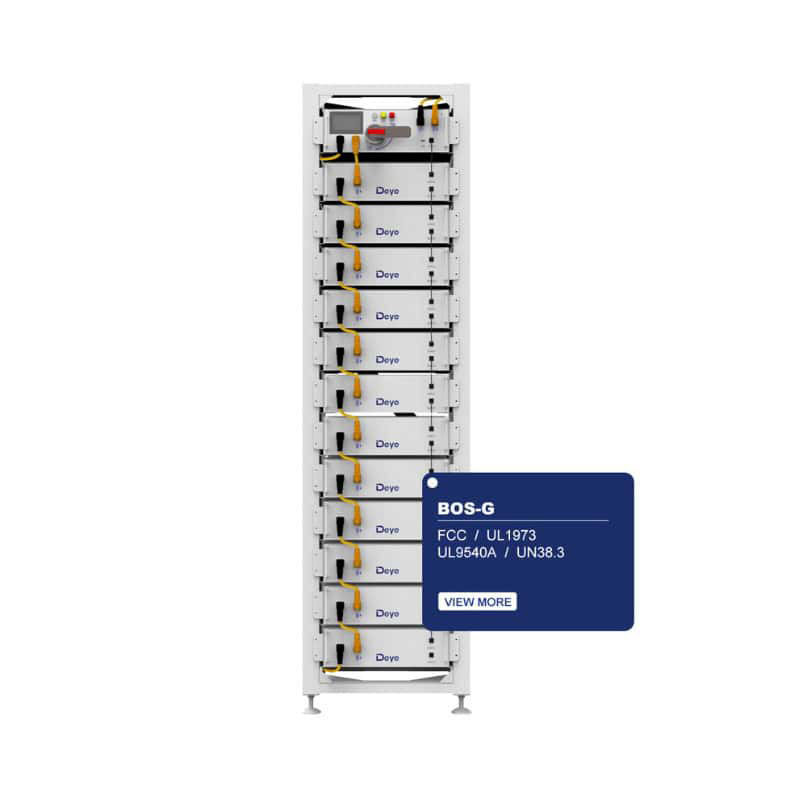

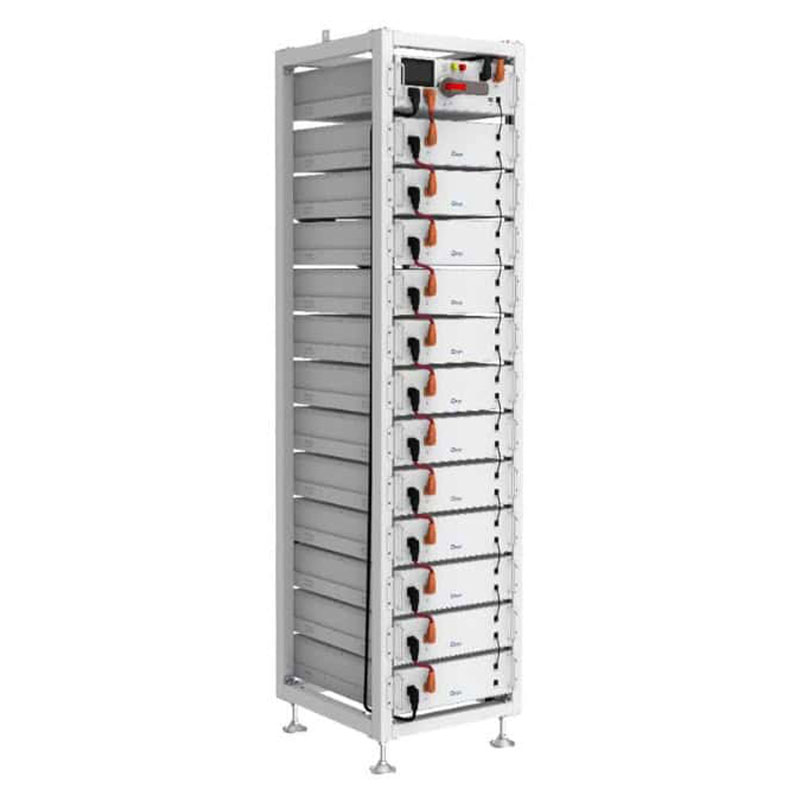

Model	BOS-G
MainParameter
Cell Chemistry	LiFePO4
Module Energy(kWh)	5.12
Module Nominal Voltage(V)	51.2
Module Capacity(Ah)	100
Battery Module Qty in series.(Optional)	3(Min)	8(Standard USCluster)	12(Standard EUCluster)
System Nominal Voltage(V)	153.6	409.6	614.4
System Operating Voltage(V)	124.8~175.2	332.8~467.2	499.2~700
System Energy(kWh)	15.36	40.96	61.44
System Usable Energy (kWh) 1	13.8	36.86	55.29
Charge/Discharge Current (A)	Recommend 50
	Nominal 100
	Peak Discharge (2 mins,25°C) 125
Working Temperature(°C)	Charge: 0~55/Discharge:-20~55
Status Indicator	Yellow: Battery HighVoltage Power On Red: Battery SystemAlarm
Communication Port	CAN2.0/RS485
Humidity	5~85%RH
Altitude	≤2000m
IP Rating of Enclosure	IP20
Dimension(W/D/H,mm)	5895901640		5895902240
Weight Approximate(kg)	258	434	628
Installation Location	Rack Mounting
Storage Temperature(°C)	0~35
Recommend Depth of Discharge	90%
Cycle Life	25±2°C, 0.5C/0.5C,EOL70%≥6000
Warranty 3	10 years
Certification	CE/IEC62619/UL1973/UL9540A/UN38.3

1 DC Usable Energy, test conditions: 90% DOD, 0.2C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
2 The current is affected by temperature and SOC.
3 The warranty is due whichever reached the first of the warranty period or life cycle power.

System Components

Model	HVB750V/100A-EU
Description	High Voltage Battery cluster control box conforming to European or British Standards
Operating Voltage	120〜750Vdc
Nominal Charge/Discharge Current	100A
Max.Charge/Discharge Current	125A
DC Input Rating	12±2%V/4.15A
Operating Temperature Range	-20~65℃
Ingress Protection	IP20
Dimension (W/D/H)	440570150mm
Weight Approximate	15.5kg

Model	HVB750V/100A-US
Description	High Voltage Battery cluster control box conforming to North American Standard
Operating Voltage	120 〜750Vdc
Nominal Charge/Discharge Current	100A
Max.Charge/Discharge Current	125A
DC Input Rating	12±2%V/4.15A
Operating Temperature Range	-20~65℃
Ingress Protection	IP20
Dimension (W/D/H)	440570150mm
Weight Approximate	17kg
High voltage box Standard configuration： ① 120 ohm terminal resistance ② 140mm communication cable ③ 220mm power cable ④1.5m power cable（US Version） 2.1m power cable（EU Version） ⑤Power plug

Model	BOS-GM5.1
Description	5.12kwh battery module
Battery Type	LiFeP04(LFP)
Nominal Voltage	51.2Vdc
Rated Capacity	100Ah
Rated Energy	5.12kWh
Nominal Charge/Discharge Current	100A
Peak.Discharge Current	125A
Charge Temperature	0〜55°C
Discharge Temperature	-20°C 〜55°C
Storage Temperature	0°C 〜350C
Ingress Protection	IP20
Dimension (W/D/H)	440570133mm
Weight Approximate	44 kg
Battery module Standard configuration：	①110mm communication cable
Battery module Standard configuration：	② 200mm power cable

Model	EPCable5.0(Optional)
Description	Standard 5-meter power cable connected to the positive pole of the external PCS
1000V/4AWG cable

Model	ENCable5.0(Optional)
Description	Standard 5-meter power cable connected to the negative pole of the external PCS
1000V/4AWG cable
