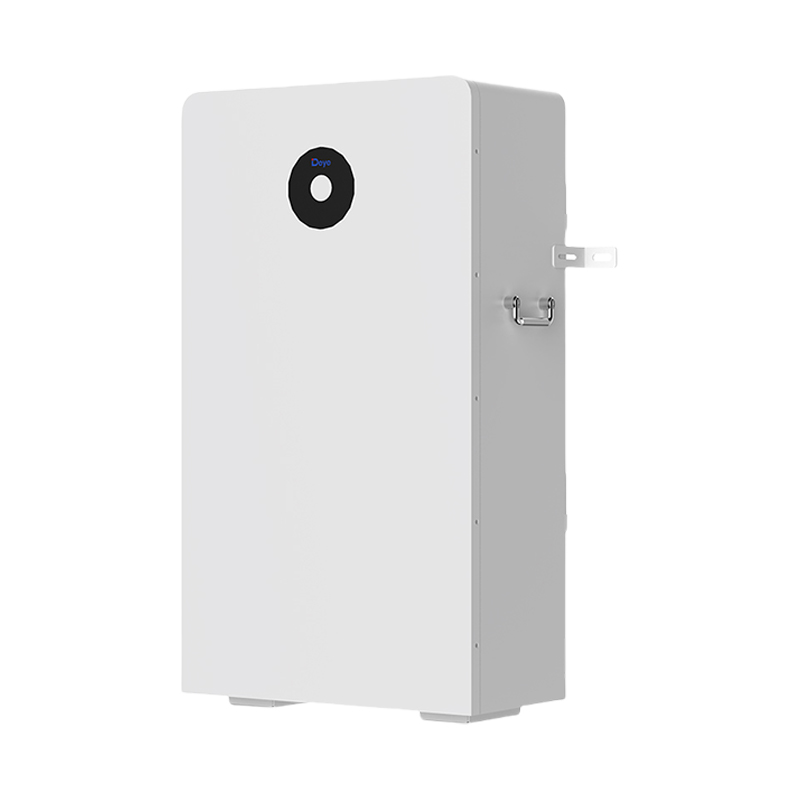

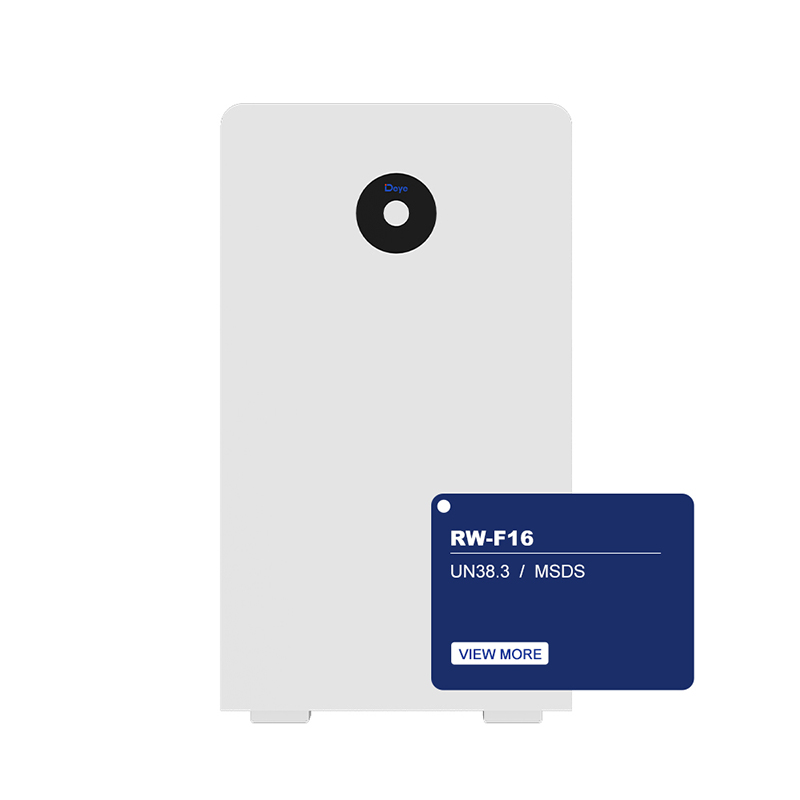

Deye RW-F16 LiFePO4 battery 16KWh

1480-1650 €/pcsЦена без НДС

Свяжитесь с нами Добавить продукт

PREV: Zetara Array - Vertical (Low-voltage）: ZLES5000VS Battery module (51.2V100Ah) NEXT: Deye AI-W5.1-B Lithium Battery 5.12KWh 51.2V, 100AH, IP65

Описание продукта

Uni Z International B.V. +31610999937

Uni Z International B.V. [email protected]

Description Introducing
The Deye RW-F16 is an advanced residential energy storage solution designed to provide reliable, safe, and efficient power backup for your home. Featuring cutting-edge LiFePO4 battery technology, the RW-F16 is built to deliver sustainable energy solutions while ensuring maximum performance and user convenience.

Key Features:
• Maximum Output Power: 8 kW with the ability to connect up to 32 units in parallel, providing scalability up to 512 kWh, perfect for larger energy needs.
• Battery Chemistry: Employing Lithium Iron Phosphate (LiFePO4) technology, known for its safety and longevity, with over 6000 cycles at 90% Depth of Discharge (DoD).
• Robust Built-in Protection: Equipped with a built-in circuit breaker for added safety during charging (160A) and discharging (160A).
• Versatile Operating Conditions: Charge from 0℃ to 55℃ and discharge in extreme conditions from -20℃ to 55℃, ensuring efficiency in varying climates.
• Remote Monitoring and Firmware Upgrade: Supports remote management and firmware upgrades via Deye inverter, allowing for effortless monitoring and maintenance.

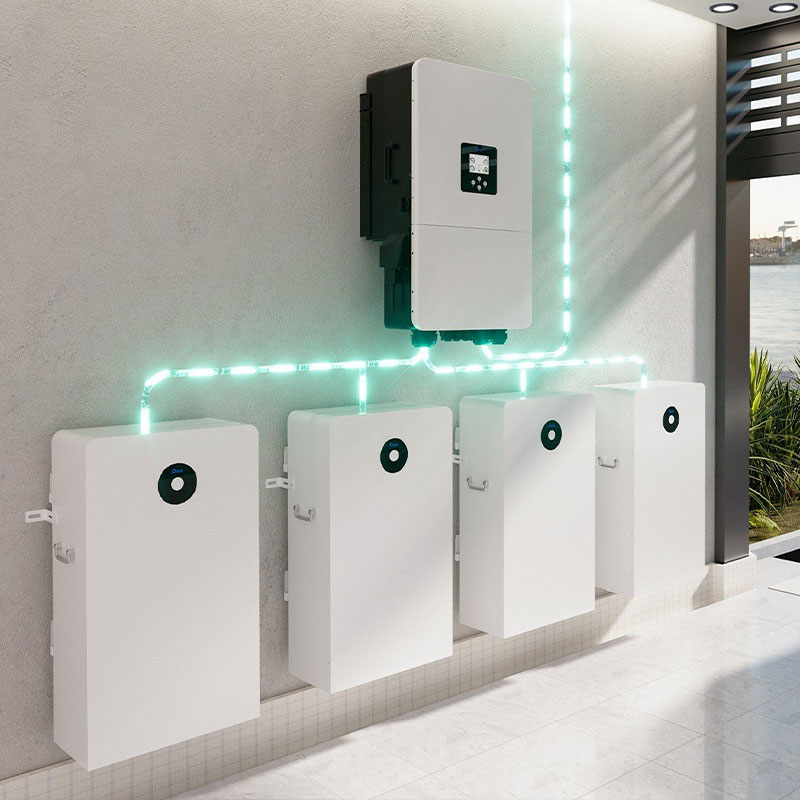

• Flexible Installation Options: Wall and floor-mounted configurations fit seamlessly into residential settings.

Specifications:
• Model: RW-F16
• Nominal Voltage: 60 Vdc
• Capacity: 125 Ah (usable energy 14.4 kWh @ 90% DoD)
• Energy Efficiency: 90% round-trip efficiency with a cycle life of ≥6000 at 25℃.
• Physical Dimensions: 480 mm (W) x 830 mm (H) x 235 mm (D)
• Weight: Approximately 122 kg
• Environmental Ratings: IP20 rating for indoor use with a temperature range of -20℃ to 55℃.
• Humidity and Altitude: Humidity tolerance up to 95% and operates effectively below 2000 m altitude.
• Warranty Period: 5 years, ensuring peace of mind and reliability.

Typical Applications:
The Deye RW-F16 is perfect for residential energy backup, ensuring you stay powered during outages and can optimize your energy consumption sustainably. Invest in the Deye RW-F16 for a smart, safe, and efficient energy storage solution that supports your active lifestyle while being friendly to the environment.

Model		RW-F16
Main Parameter
Battery Chemistry		LiFeP0₄
Built-in Circuit Breaker		125A 2P，60Vdc
Capacity ( Ah ) ^[1]		314
Scalability		Max. 32 pcs pack ( Max.512kWh ) in parallel
Nominal Voltage ( V )		51.2
Operating Voltage ( V )		44.8 〜57.6
Nominal Energy ( kWh )^[1]		16
Usable Energy ( kWh@90%DOD)		14.4
Charge/Discharge Current (A)^[2]	Max. Continuous	160 / 160
	Peak	300 / 300 (10 sec )
Other Parameter
Recommend Depth of Discharge		90%
Dimension (W×H×D, mm )		480×830×235 (Without hanging board and base )
Weight Approximate(kg)		122
Master LED Indicator		LED (SOC and working state)
IP Rating of Enclosure		IP20
Operating Temperature		Charge: 0 〜55°C / Discharge: -20℃ 〜55℃
Recommend Operating Temperature		15℃ 〜35℃
Storage Temperature		0℃ 〜35℃
Relative Humidity		95%
Altitude		≤2000m
Cycle Life		≥6000 ( 25°C±2°C，0.5C / 0.5C, 90%DOD，70%EOL)
Installation		Wall-Mounted, Floor-Mounted
Communication Port		CAN2.0, RS485
Warranty Period ^[3]		5 years
Energy Throughput ^[3]		52.5MWh ( 25C, 0.5C / 0.5C, 70%EOL)
Certification		UN38.3, MSDS

[1] Test conditions: 25℃±2℃, at the beginning of life, 0.5C charge & 0.5C discharge,100% DOD.
[2] The current is affected by temperature and SOC.
[3] Conditions apply; refer to Deye Warranty Letter.

Product Expansion
Battery backup time	RW-F16
Inverter	2h	3h	4h
SUN 12KW SG 04LP3	2 units	-	3 units
SUN 12KW SG 02LP1	2 units	-	3 units
SUN 12KW SG 05LP3	2 units	-	3 units
SUN 20KW SG 05LP3	3 units	4 units	5 units
