Deye GB-S5K-EU ALL-IN-ONE HYBRID HV SOLAR INVERTER 3PH

868~1041 €/pcЦена без НДС

Свяжитесь с нами Добавить продукт
PREV: No previous product NEXT: Deye GB-S6K-EU ALL-IN-ONE HYBRID HV SOLAR INVERTER 3PH
  • Описание продукта

Uni Z International B.V.+31610999937

Uni Z International B.V.[email protected]

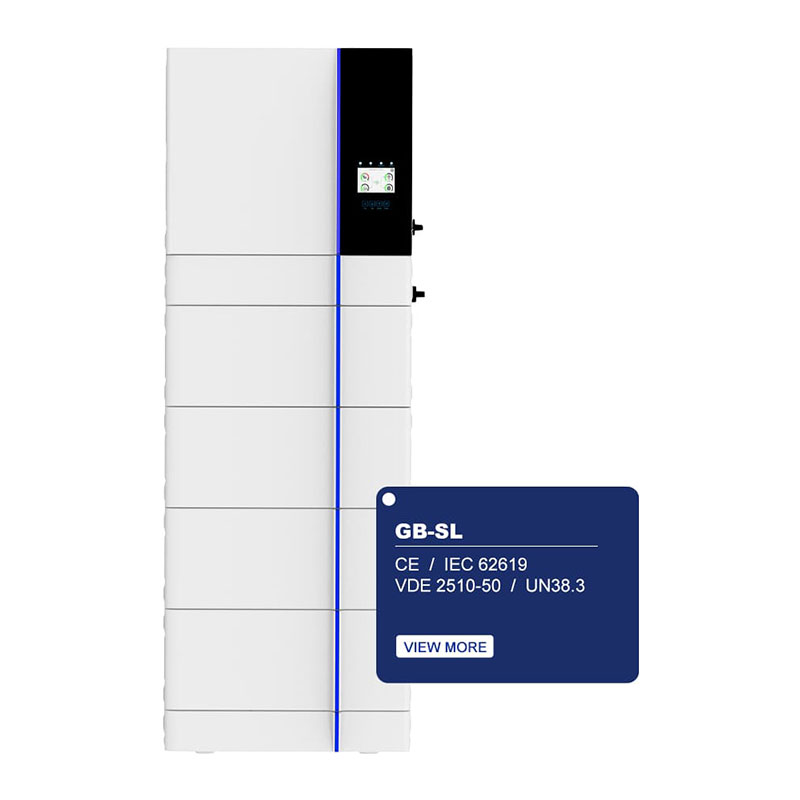

GB-SL (EU)

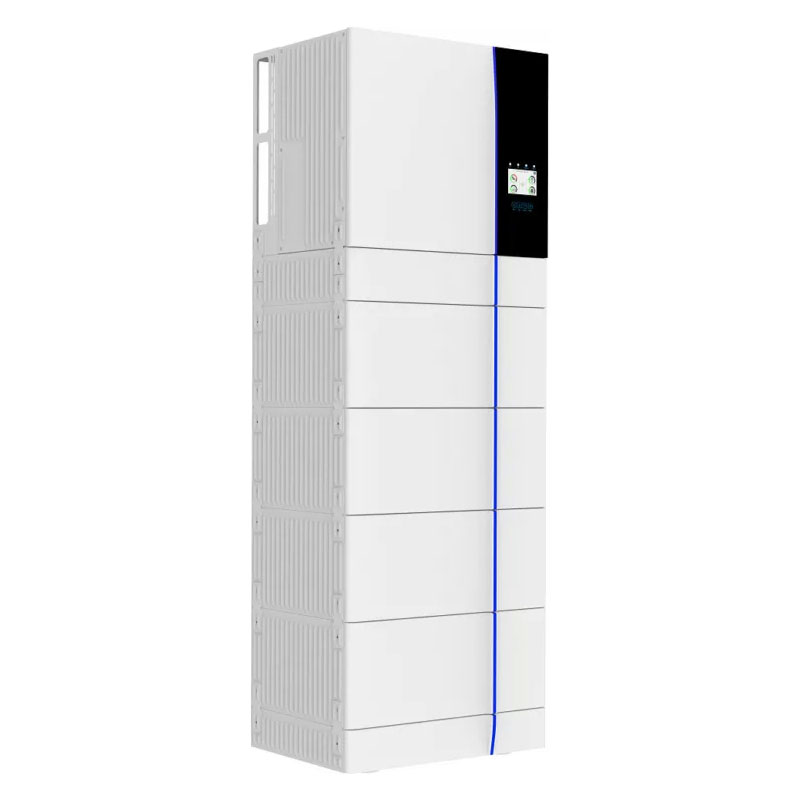

The Deye GB-SL5K/6K/8K/10K/12K/15K/20K-EU All-in-One Hybrid Inverter is a cutting-edge solution for your energy needs. This innovative product seamlessly integrates solar power, battery storage, and grid management into a single, beautifully designed unit.

Key Features: 1. Integrated Design: The all-in-one design combines functionality and aesthetics, making it perfect for various installation scenarios. 2. High Power Output: With models ranging from 5kW to 20kW, this inverter series can deliver up to 100% unbalanced output per phase and a maximum output of 60% rated power. 3. Parallel Operation: Connect up to 10 units in parallel for both on-grid and off-grid applications, ensuring a reliable and scalable energy solution. 4. Versatile Battery Compatibility: Compatible with a wide range of lithium-ion batteries, with voltages ranging from 160V to 700V. 5. Efficient MPPT: Two MPP trackers with a high efficiency of 99.9% ensure optimal solar energy harvesting. 6. Generator and AC Coupling Support: Seamlessly integrate with diesel generators and AC-coupled systems for enhanced energy management. 7. Wide Operating Temperature Range: Designed to operate in temperatures from -20°C to 60°C, with an optional heating function for low-temperature environments. 8. Advanced Protection: Equipped with comprehensive protection features, including PV input lightning protection, anti-islanding, reverse polarity protection, and more.

The Deye GB-SL5K/6K/8K/10K/12K/15K/20K-EU All-in-One Hybrid Inverter is compatible with the GB-LM4.0 battery modules, which feature LiFePO4 chemistry and a modular design for flexible energy storage capacity. The high-voltage battery cluster control box (GB-LB) ensures optimal performance and safety. With a 5-year warranty for the inverter and a 10-year warranty for the battery modules, Deye offers peace of mind and long-lasting performance. Choose the Deye GB-SL5K/6K/8K/10K/12K/15K/20K-EU All-in-One Hybrid Inverter for a reliable, efficient, and future-proof energy management solution.

Model GB-S5K-EU GB-S6K-EU GB-S8K-EU GB-S10K-EU GB-S12K-EU GB-S15K-EU GB-S20K-EU
Battery Input Data
Battery Type LI-ION
Battery Voltage Range (V) 160~700
Max. Charging Current (A) 30 37
Max. Discharging Current (A) 30 37
Number of battery input 1
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 6500 7800 10400 13000 15600 19500 26000
Max. DC Input Voltage (V) 1000
Start-up Voltage (V) 150
MPPT Range (V) 150-850
Full Load DC Voltage Range (V) 195-850 195-850 260-850 325-850 340-850 420-850 500-850
Rated DC Input Voltage (V) 600
PV Input Current (A) 20+20 26+20 26+26
Max. PV ISC (A) 30+30 39+30 39+39
No.of MPP Trackers 2
No.of Strings per MPP Tracker 1+1 2+1 2+2
AC Output Data
Rated AC Output and UPS Power (W) 5000 6000 8000 10000 12000 15000 20000
Max. AC Output Power (W) 5500 6600 8800 11000 13200 16500 22000
AC Output Rated Current (A) 7.6/7.3 9.1/8.7 12.2/11.6 15.2/14.5 18.2/17.4 22.8/21.8 30.4/29
Max.AC Output (Off-grid) Current(A) 8.4/8 10/9.6 13.4/12.8 16.7/16 20/19.2 25/24 33.4/31.9
Max. Three-phase Unbalanced Output Current(A) 13 13 18 22 25 30 35
Max. Continuous AC Pass through (A) 40 80
Peak Power (off grid) 1.5 time of rated power, 10 S
Generator input/Smart load/AC couple current (A) 7.6/40/7.6 9.1 / 40 / 9.1 12.2 / 40 / 12.2 15.2 / 40 / 15.2 18.2 / 80 / 18.2 22.8 / 80 / 22.8 30.4 / 80 / 30.4
Power Factor 0.8 leading to 0.8 lagging
Output Frequency and Voltage 50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type Three Phase
DC injection current (mA) <0.5%ln
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97%
MPPT Efficiency 99.90%
Protection
Integrated PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection,  Arc Fault Circuit Interruption (AFCI optional)
Output Over-Voltage Protection DC Type II/AC Type III
Certifications and Standards CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98,
Grid Regulation VDE 0126-1-1, RD 1699, C10-11
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (°C) 40~60°C, >45°C derating
Cooling Free cooling Smart cooling
Communication with BMS CAN
Warranty 5 years



Model GB-LM4.0
Battery System Data
Cell Chemistry LiFePO4
Module Energy (kWh) 4.09
Module Nominal Voltage (V) 102.4
Module Capacity (Ah) 40
Battery Module Qty in series. (Optional) 2 3 4 5 6
System Nominal Voltage (V) 204.8 307.2 409.6 512 614.4
System Operating Voltage (V) 179.2~691.2 |
System Energy (kWh) 8.18 12.27 16.36 20.45 24.54
System Usable Energy (kWh)1 7.36 11.04 14.72 18.4 22.08
Charge/ 2 Discharge Current (A) recommend 20
max 40
peak 50@2min
Working Temperature(°C) Charge：-20~55/Discharge:-20~60
Communication Port CAN2.0/RS485
Thermal Management Natural Cooling
Recommend Depth of Discharge 90%
Cycle Life 25±2℃，0.5C/0.5C,70%EOL≥6000
3  Warranty 10 years
Certification CE/IEC 62619/VDE 2510-50/UN38.3
Other Data
Humidity 5~85%RH
Altitude (m) <2000
IP Rating of Enclosure IP65
Noise (dB) <55
Storage Temperature (°C) 0~35
Dimension (W/D/H,mm) 540*385*1100 540*385*1320 540*385*1540 540*385*1760 540*385*1980
Weight Approximate (kg) 137 176 215 254 293
Installation Location Floor Mount



1 DC Usable Energy, test conditions: 90% DOD, 0.2C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
2 The current is affected by temperature and SOC.
3 The warranty is due whichever reached first of warranty period or life cycle power.



System Components

GB-S5K/6K/8K/10K/12K/15K/20K-EU Hybrid inverter
Dimension (W/D/H) 540*385*450mm
Weight Approximate 39.8kg



GB-LB High voltage battery cluster control box
Operating Voltage 120~750Vdc
Nominal Charge/Discharge Current 40A
Max.Charge/Discharge Current 50A
Operating Temperature Range -20~65°C
Ingress Protection IP65
Dimension (W/D/H) 540*385*110mm
Weight Approximate 12kg



GB-LM4.0 4.09 kWh battery module
Battery Type LiFePO4(LFP)
Nominal Voltage 102.4Vdc
Rated Capacity 40Ah
Rated Energy 4.09kWh
Max. Charge/Discharge Current 40A
Peak Charge/Discharge Current 50A
Charge Temperature 0~55°C
Discharge Temperature -20°C~55°C
Storage Temperature 0C~35°C
Ingress Protection IP65
Dimension (w/D/H) 540*385*220mm
Weight Approximate 39kg



GB-LBase Battery module base
Dimension (W/D/H) 540*385*100mm
Weight Approximate 7kg
