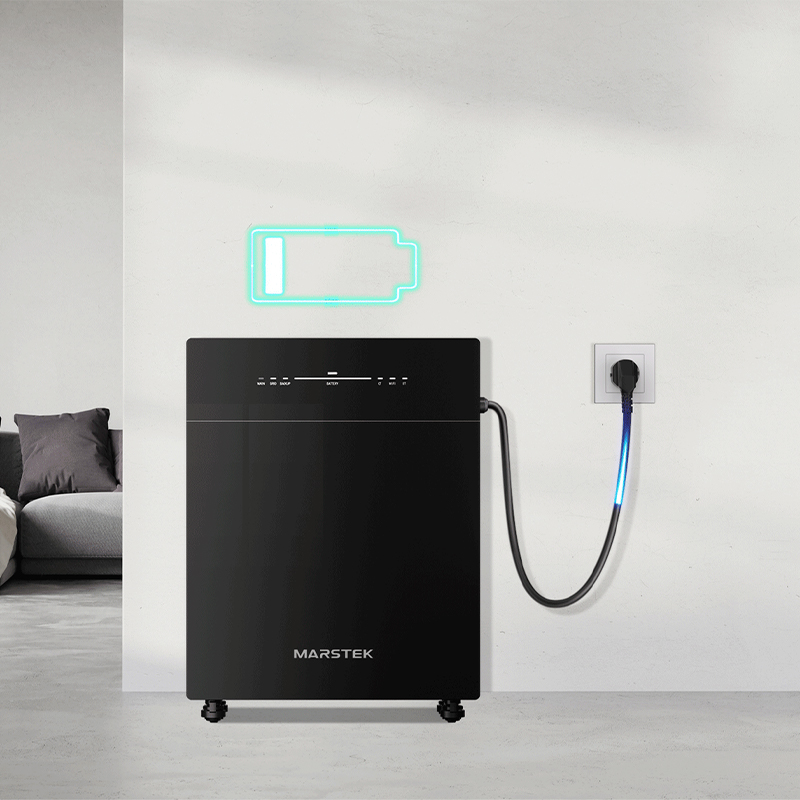

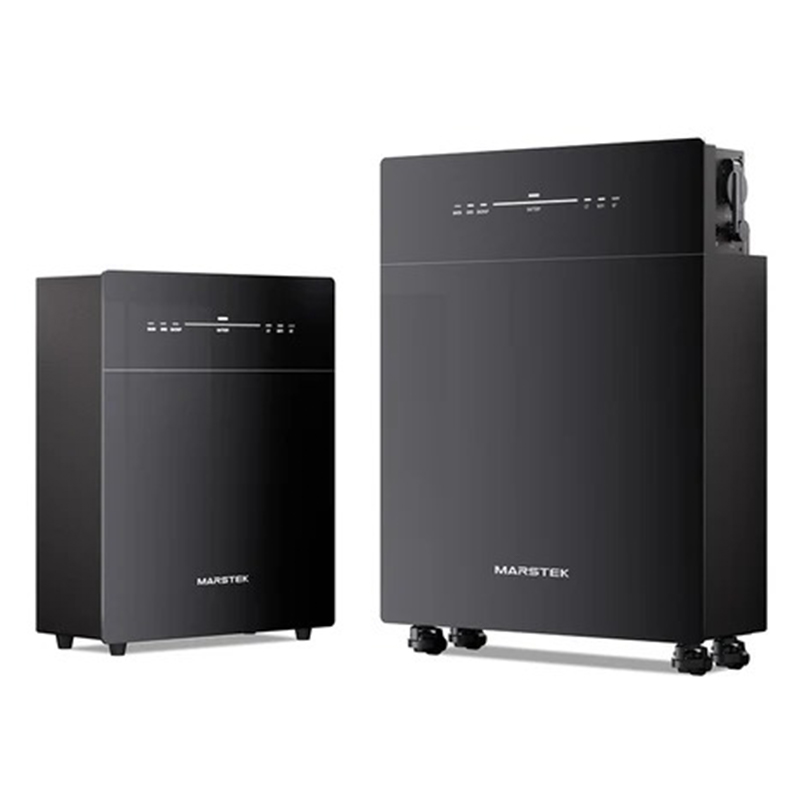

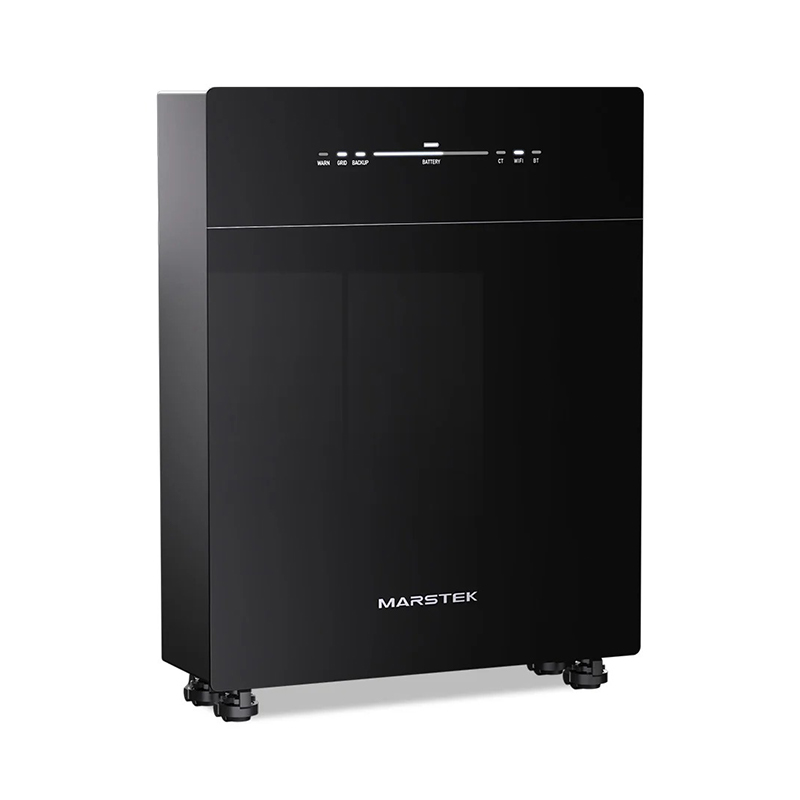

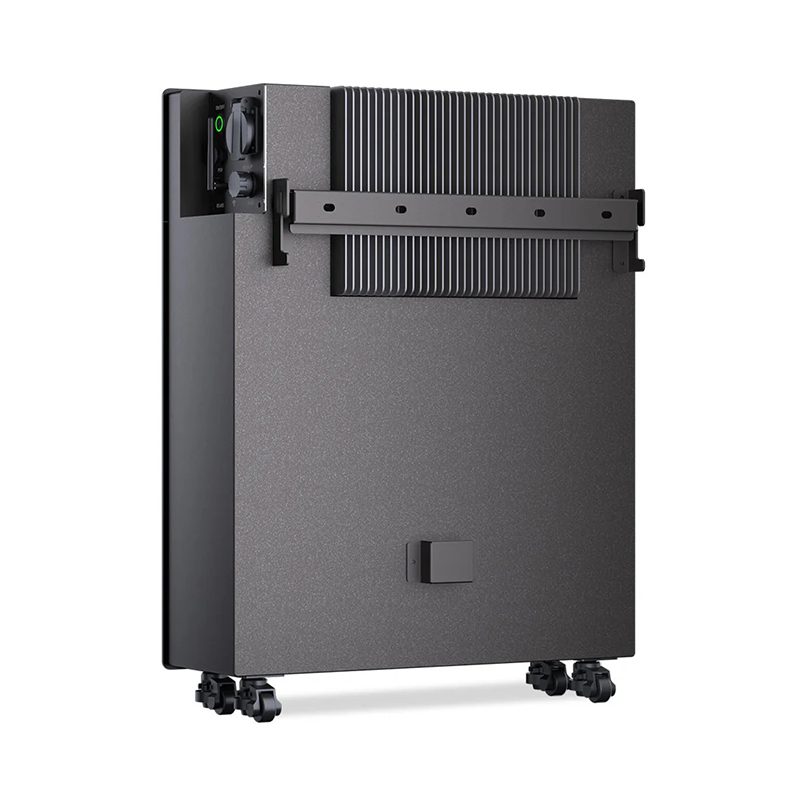

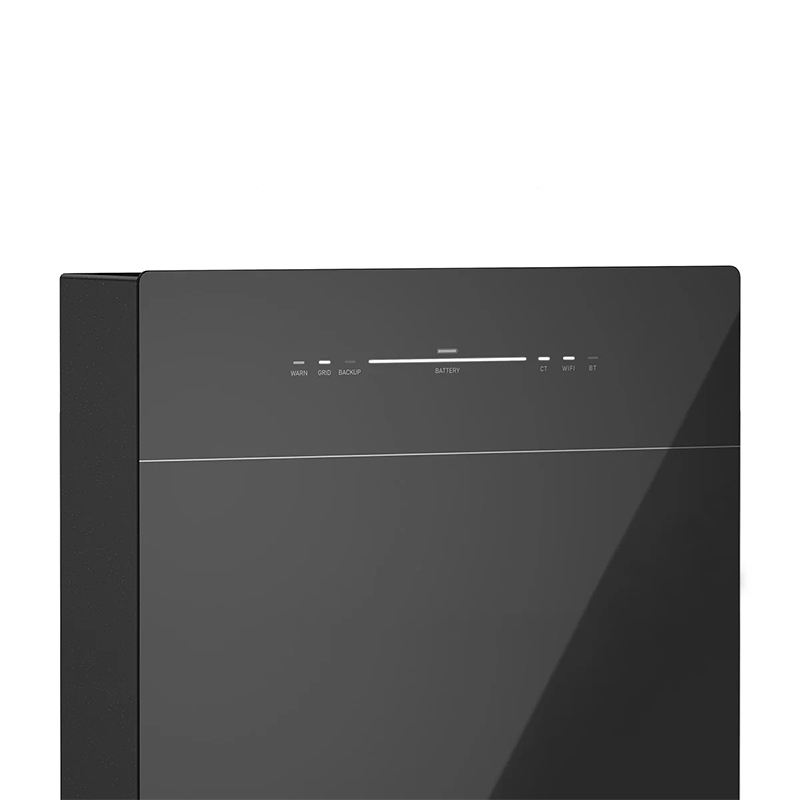

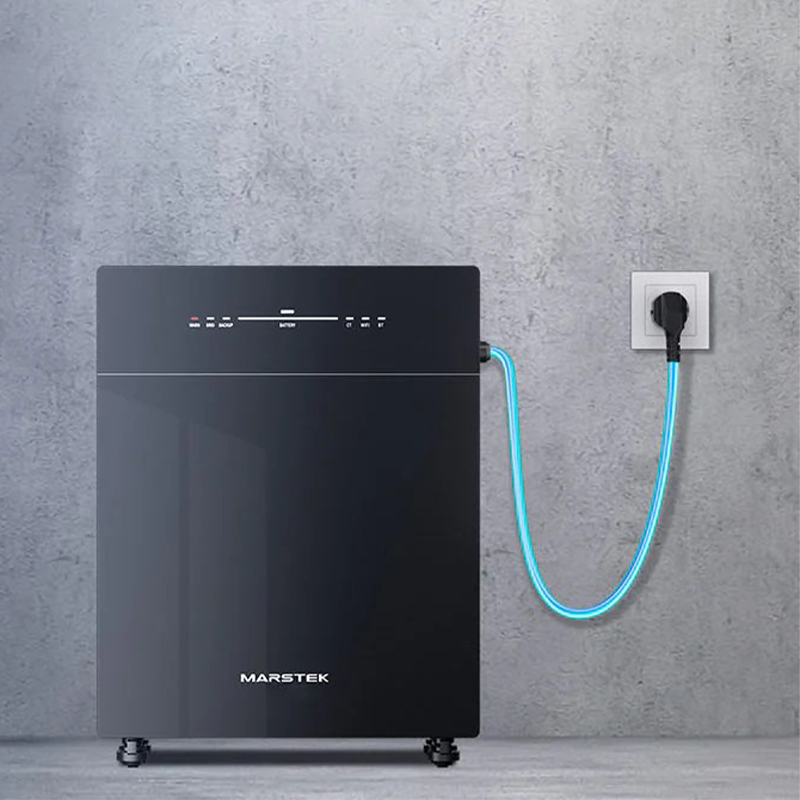

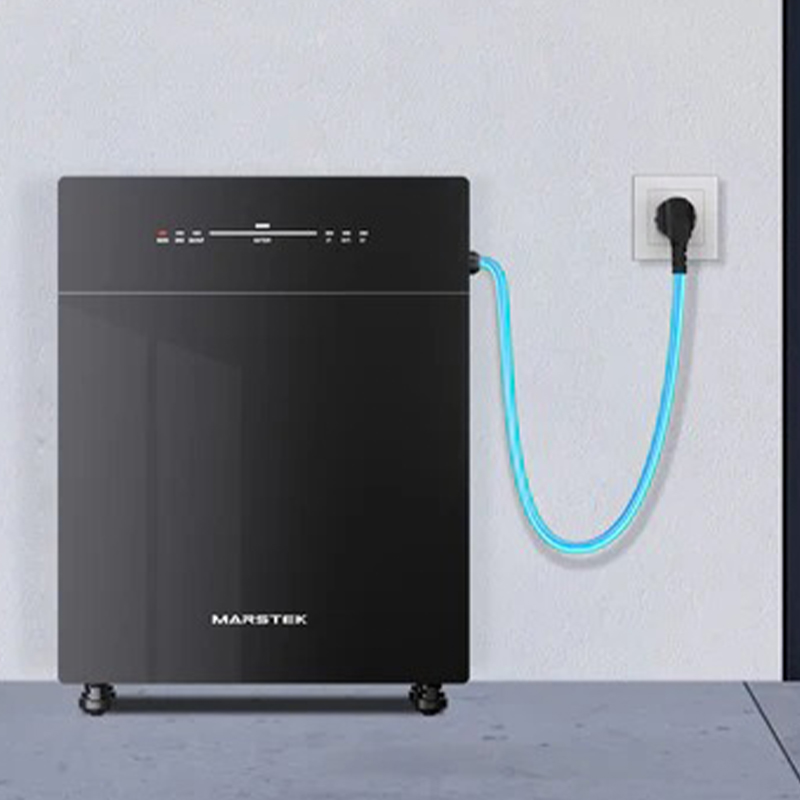

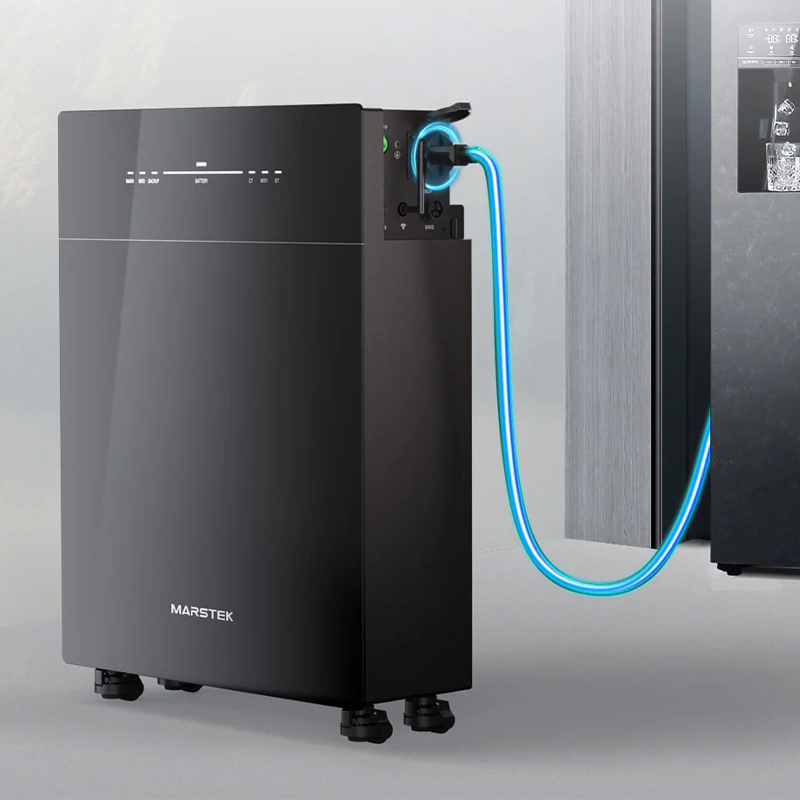

MARSTEK VENUS E AC Battery ESS Поставщики, Компания

Model	MARSTEK VENUS-E
Battery Info
Rated Voltage	51.2V(16S)
Capacity	5120Wh
Life Cycle (Times)	>6000 (25°C)
Battery Type	LiFePO₄
DoD	90%
AC Input / Output (On Grid)
Rated Input Power	2.5kVA
Rated Output Power	2.5kVA/800VA
Operating Phase	L/N/PE
Rated Grid Voltage	230V
Grid Voltage Range	187V～253V
Rated Grid Frequency	50Hz
Rated Grid Output Current	10.9A
Power Factor	>0.99 (Default) / 0.8 leading..0.8 lagging (Adjustable)
THDi	<3%
Back-up (Off Grid)
Rated Output Power	2.5kVA
Max. Apparent Output Power	3.5kVA, 10s
Rated Grid Voltage	230V
Rated Output Current	10.9A
Rated Output Voltage Frequency	50Hz
THDu(Linear Load)	<3%
Efficiency
Battery-AC Side Max. Efficiency	>93.5%
Protection
Protection Level	Ⅰ
Overvoltage/Voltage Withstand Level	DC Ⅱ/AC Ⅲ
General
Isolation Type	Isolated
Operating Temperature Range	-20°C ～+ 55°C(Storage -30°C ～+ 85°C)
Relative Humidity	0～95%
Ingress Protection	IP65
Cooling Strategy	Natural Convection
Max. Operating Altitude	2000m
On-grid Connection Standard	NFEN50549-1,VDE4105/0124,G98,CE10-21,PETREE,PN-EN50549-1/-2,TORR25,UNE217001/217002,NTS631,AS47772
Regulatory/EMC	IEC62040,IEC62477,IEC/EN 61000-6-1/-2-/3-/4,IEC/EN 61000-3-2/-3,EN 300 328,EN 301 489 -1/-17,EN 50665,CB 62619
Dimension	480153624mm
Weight	58±0.5kg
Additional Data
On-grid AC Connection	Three-wire Household Plug (Euro16A)
Back-up Connection	Three-hole socket (Euro socket)
Display	LED
Supported Communication Interface	LAN/WIFI/ Bluetooth /RS485

Model	MARSTEK JUPITER-C+
Energy Storage Unit (Stack)
Battery Energy	2.56kWh
Life Cycle	>6000(25°C)
Battery Type	LiFePO₄
Battery Capacity	50Ah
Number of Energy Storage Unit	3PCS (max)
Total Capacity of The Product	2.56~10.24kWh
PVInput
Maximum Input Power	2400w
Operating Voltage Range	16~60V
Maximum Input Short Circuit Current(Single Channel)	20A
MPPT Track Number	4
MPPT Efficiency	99.80%
AC Output
Rated Output Power	800vA
Working Phase	L/N/PE
Rated Grid Voltage	230v
Rated Grid Frequency	50Hz
Rated Grid Output Current	3.48A
Power Factor	>0.99(default),0.8lagging...0.8leading(adjustable)
THDi	<3%
Efficiency
Battery Side-AC Side Maximum Efficiency	>96.5%
Basic Parameters
Ambient Temperature Range	-20~+60℃(Storage-30～+85℃)
Relative Humidity	0-95%
IP Level	IP65
Cooling Method	Natural Cooling
Maximum Altitude	2000m
General
Grid connection	BC01
Photovoltaic connection	MC4
Off-gridport	European Socket
Display	Touchable HD Screen
Communication	Bluetooth,WIFI&RS-485(WaterproofAviationPlug）
On-grid Connection Standard	VDE 4105/0124,NF EN50549-1,CEI0-21,PETREE,PN-EN 50549-1/-2,PEA 1165-2020
Regulatory/EMC	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2-/3-/4, IEC/EN 61000-3-2/-3, EN 300 328, EN 301 489 -1/-17,EN 50665,EN 62920, CB 62619,EN 50549-1

Model	B2500-D
General
Capacity	2240wh
Cell Chemistry	LiFePO₄
Lifecycle	6000+ Cycles to 80% Capacity
Storage Temp.	14°F~131°F(-10°C~55°C)
Operating Temp.	14°F~122°F(-10°C~50°℃)
Material	ABS +PC +Metal
Weight	20士0.5kg
Dimensions	295175350mm
Battery Management System	OVP,UVP,OCP,SCP,OTP,UTP,etc
Wireless	BT 4.2+ WIFI2.4G
MC4*2 PVINPUT
Power	800w*2 Max
Voltage Range	12V-59V
Max.Input Current	13.5A*2
MC4*2OUTPUT
Power	400w*2 Max
Voltage Range	16V~40V
Max.Output Current	15A Max
Additional Data
Protection Rated	IP65
Standards	EN IEC 62109-1/-2, EN IEC 61000-6-1/3, IEC 62619:2022,WEEE,RoHS, REACH

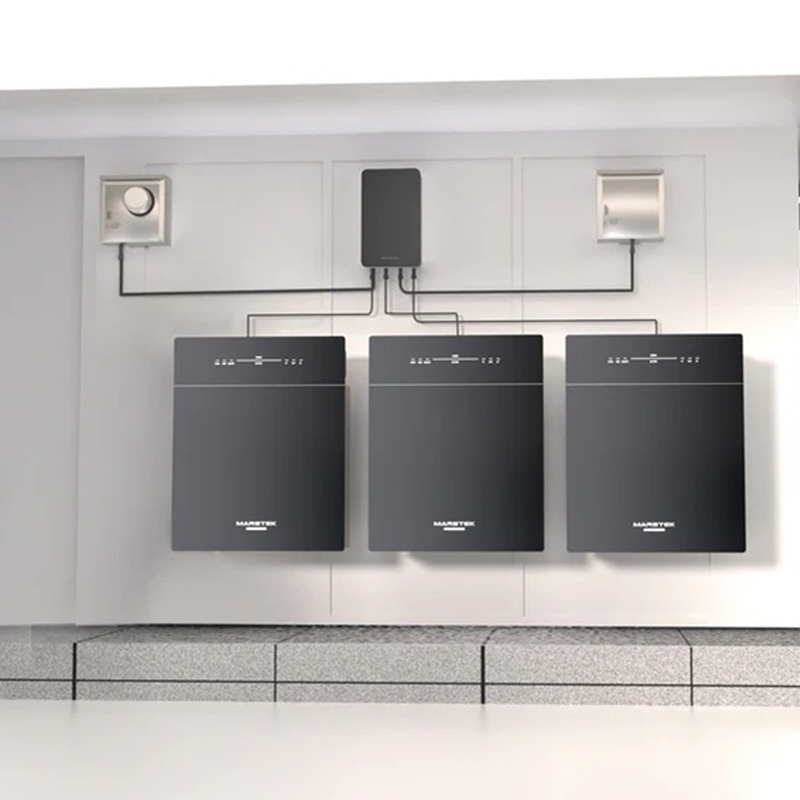

Model	MARSTEK VENUS-D
Energy Storage Unit (Stack)
Adaptive Energy Storage Unit	MST-E2.5ST-D
Number of Energy Storage Unit	6PCS (Max)
Total Capacity of the Product	2.56kWh~15.36kWh
PVInput
Maximum Input Power	4000W
MPPT Operating Voltage Range	25V~55V
Maximum Input Current (Single Channel)	32A
MPPT Track Number	4
MPPT Efficiency	99.80%
Back-up (Off-grid)
Rated Output Power	2200vA
Peak Output Power	2400VA,60s
Rated Output Voltage	230v
THDu (Linear Load)	≤3%
AC Input/Output
Rated Output Power	2200VA/800VA&2200VA
Working Phase	L/N/PE
Rated Grid Voltage	230v
Rated Grid Frequency	50Hz
Rated Grid Output Current	9.57A/3.48A&9.57A
Power Factor	> 0.99(default), 0.8lagging...0.8leading(adjustable)
THDi	<3%
Efficiency
Battery Side-AC Side Maximum Efficiency	>94.5%
Basic Parameters
Ambient Temperature Range	-20℃~+60°C (Storage-30℃~+85°℃)
Relative Humidity	0－95%6
IP Level	IP65
Cooling Method	Natural Cooling
Maximum Altitude	2000m
General
Grid connection	BC01
Photovoltaic connection	MC4
Off-grid port	European Socket
Display	LED
Communication	Bluetooth,WIFI & RS-485, EtherNet

Model	MARSTEK VENUS-E
Battery Info
Rated Voltage	51.2V(16S)
Capacity	5120Wh
Life Cycle (Times)	>6000 (25°C)
Battery Type	LiFePO₄
DoD	90%
AC Input / Output (On Grid)
Rated Input Power	2.5kVA
Rated Output Power	2.5kVA/800VA
Operating Phase	L/N/PE
Rated Grid Voltage	230V
Grid Voltage Range	187V～253V
Rated Grid Frequency	50Hz
Rated Grid Output Current	10.9A
Power Factor	>0.99 (Default) /0.8 leading..0.8 lagging(Adjustable)
THDi	<3%
Back-up (Off Grid)
Rated Output Power	2.5kVA
Max. Apparent Output Power	3.5kVA, 10s
Rated Grid Voltage	230V
Rated Output Current	10.9A
Rated Output Voltage Frequency	50Hz
THDu(Linear Load)	<3%
Efficiency
Battery-AC Side Max. Efficiency	>93.5%
Protection	Ⅰ
Protection Level	DC Ⅱ /AC Ⅲ
Overvoltage/Voltage Withstand Level
General	Isolated
Isolation Type	-20°C ～+ 55°C(Storage-30°C ～+ 85°C)
Operating Temperature Range	0～95%
Relative Humidity	IP65
Ingress Protection	Natural Convection
Cooling Strategy	2000m
Max. Operating Altitude	NFEN50549-1,VDE4105/0124,G98,CE10-21,PETREE,PN-EN50549-1/-2,TORR25,UNE217001/217002,NTS631,AS47772
On-grid Connection Standard	IEC62040,IEC62477,IEC/EN 61000-6-1/-2-/3-/4,IEC/EN 61000-3-2/-3,EN 300 328,EN 301 489 -1/-17,EN 50665,CB 62619
Regulatory/EMC
Dimension	480153624mm
Weight	58±0.5kg
Additional Data
On-grid AC Connection	Three-wire Household Plug (Euro16A)
Back-up Connection	Three-hole socket (Euro socket)
Display	LED
Supported Communication Interface	LAN/WIFI/ Bluetooth / RS485
